Preferences - Processing Profiles Tab
A processing profile determines the resolution and tolerances used when converting point data to mesh models.

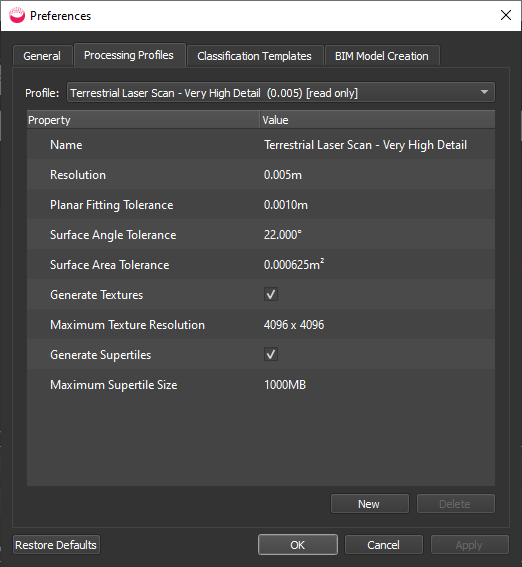

In this dialog, you can view the profiles installed with PointFuse (suitable for point clouds built from Terrestrial, Mobile or Airborne technology) as well as create and edit any custom ones.
See Processing Profiles for how to use, create, and edit.
Default Processing Profile Values
The default profiles you see may vary, according to your license.
The names of the default profiles are for guidance. The values best suited to converting your particular point cloud may differ.
Default profiles grouped by type, as listed in PointFuse
|
Profile |
Resolution |
Planar Fitting Tolerance |
Surface Angle Tolerance |
Surface Area Tolerance |
|---|---|---|---|---|
|
Terrestrial LS - Very High Detail |
0.005 |
0.001 |
22 |
0.0006 |
|
Terrestrial LS - High Detail |
0.010 |
0.002 |
22 |
0.0025 |
|
Terrestrial LS - Medium Detail |
0.015 |
0.005 |
18 |
0.0056 |
|
Terrestrial LS - Low Detail |
0.025 |
0.010 |
22 |
0.0156 |
|
Handheld - High Detail |
0.010 |
0.002 |
22 |
0.0025 |
|
Handheld/SLAM - High Detail |
0.020 |
0.004 |
22 |
0.0100 |
|
Handheld/SLAM - Low Detail |
0.030 |
0.010 |
22 |
0.0225 |
|
Wearable/SLAM - High Detail |
0.015 |
0.005 |
18 |
0.0056 |
|
Wearable/SLAM - Medium Detail |
0.020 |
0.010 |
18 |
0.010 |
|
Wearable/SLAM - Low Detail |
0.025 |
0.015 |
18 |
0.0156 |
